Circuit Breaker Timer
With a wealth of experience and leading market know how, we have established an enviable position of one of the leading manufacturers and suppliers of Circuit Breaker Timer. The kit is provided with PTI meters, switches, miniature relays and indicators and housed in a wooden case. We use optimum grade components, sourced from the most reliable vendors to manufacture the timer kit. Our Circuit Breaker Timer is highly utilized for reading the trip timing of various circuit breakers. We offer the kit at affordable prices.
Error free reading
Compact and portable
Resistant to shock

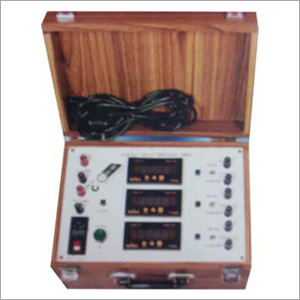

C B TIMER is a very compact and portable instrument which compromises of three nos. Programmable Time Interval Meters with necessary terminals, switches, indicators and miniature relays housed in a sunmica laminated wooden box. Two pairs of terminal are provided for DC supply (Input) and Trip/Close coils while three pairs of terminals for three â€œCONTACTS" (viz. Main/resistor/ auxiliary) of the Circuit Breakers. The CB Timer operates on 230 V AC mains supply. The T.I. Meters automatically record the trip/close timing of each of the contacts, with memory retention of 10 years.
|Time Interval Meters ||4 digit, auto ranging (programmable) |
|Range ||0.0001 to 9999 Secs. |
|Accuracy ||0.5% |
|Overall Dimensions ||13" x 9" x 6" approx. |
